Interference Mitigation
85 dBc single-direction, 75 dBc three-direction, 360° suppression. Handles pulse, sweep, Gaussian and mixed interference.

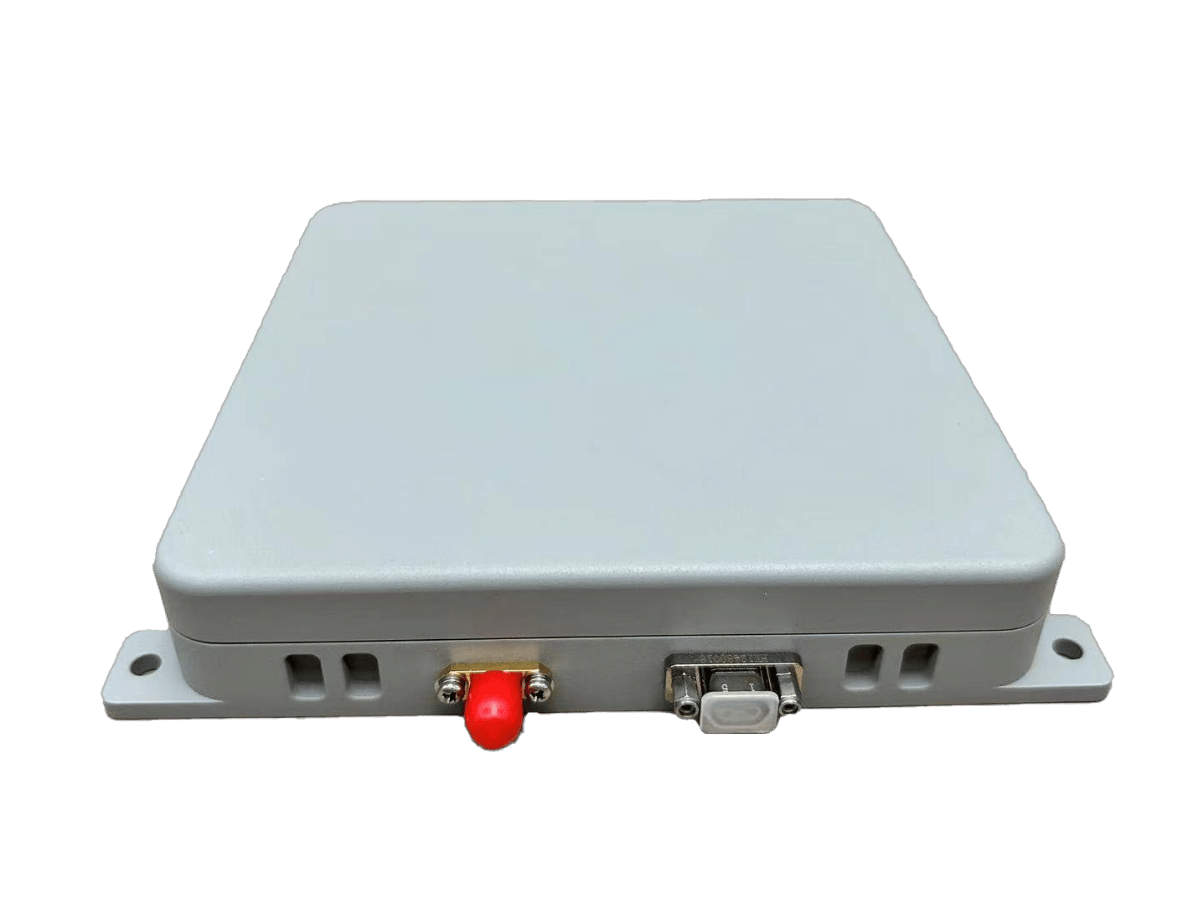

PNT-Secure 400
85 dBc single-direction, 75 dBc three-direction, 360° full-space protection. Built-in GNSS receiver with NMEA 0183 output. Designed for civil applications: robotics, logistics, and critical infrastructure timing.
Product Features
Navigation security terminal for civil unmanned systems and critical infrastructure
85 dBc single-direction, 75 dBc three-direction, 360° suppression. Handles pulse, sweep, Gaussian and mixed interference.
Built-in full-frequency GNSS receiver, NMEA 0183 output. Zero-threshold integration with existing systems.
400 g, 10 W, 130×135×38 mm. Easy integration into robotics and vehicle platforms.
5–17 V wide input. Direct connection to 12 V / 24 V systems, no power adaptation needed.
Supports spectrum monitoring, histogram analysis and other secondary development for differentiated solutions.
BeiDou / GPS / GLONASS / GALILEO / GNSS hybrid. Main frequency B1L1, configurable second frequency.
Interference power detection for calibration, acceptance testing and live demonstrations.
Direct manufacturer supply with reliable lead times and professional technical support.
Specifications
Hard-core metrics, visible performance
| Model | PNT-Secure 400 |
|---|---|
| Interference suppression capability | Single-direction better than 85 dBc; three-direction better than 75 dBc |
| Interference types | Band-limited Gaussian white noise, spread-spectrum matching, pulse, sweep, mixed interference |
| Protection coverage | Azimuth 0°–360°, elevation -90°–90° |
| Operating frequency | Main B1L1, configurable second frequency (e.g. G1) |
| Receiver | Built-in full-frequency GNSS module, NMEA 0183 output |
| Output frequency | 1575.42 MHz / 1268.52 MHz |
| Output power | -65 ± 1 dBm |
| Output impedance | 50 Ohm |
| Supply voltage | 5–17 V |
| Power consumption | 10 W (room temperature) |
| Dimensions | 130 × 135 × 38 mm |
| Weight | 400 g |
| Interface | J30J-9ZK; TTL serial; RF output |
| Protocol | NMEA 0183 (GGA / GSV / RMC) |
| Satellite systems | GPS / BeiDou / GLONASS / GALILEO / GNSS |
Solutions
Why customers choose PNT-Secure 400 for civil security projects
Interference sources cause GNSS to lose lock in complex environments.
Integrators want fewer wires, less debugging, and fast deployment.
Robotic platforms are extremely sensitive to weight, size, and power.
Integrators want added features but lack the ability to develop from scratch.
Government or enterprise projects require data and proof for acceptance.
Overseas projects require compatibility with different global navigation systems.
Various installation methods: vehicle, pole, wall, UAV.
Direct sales customers fear lack of support after purchase.
Applications
From civil unmanned platforms to critical infrastructure, covering multiple civil security scenarios
400 g, 10 W, small size and low power. Suitable for robotic platforms.
5–17 V wide voltage, direct 12 V / 24 V connection. For patrol and commercial vehicles.
Maintains positioning under strong interference, ensuring fleet dispatch and navigation security.

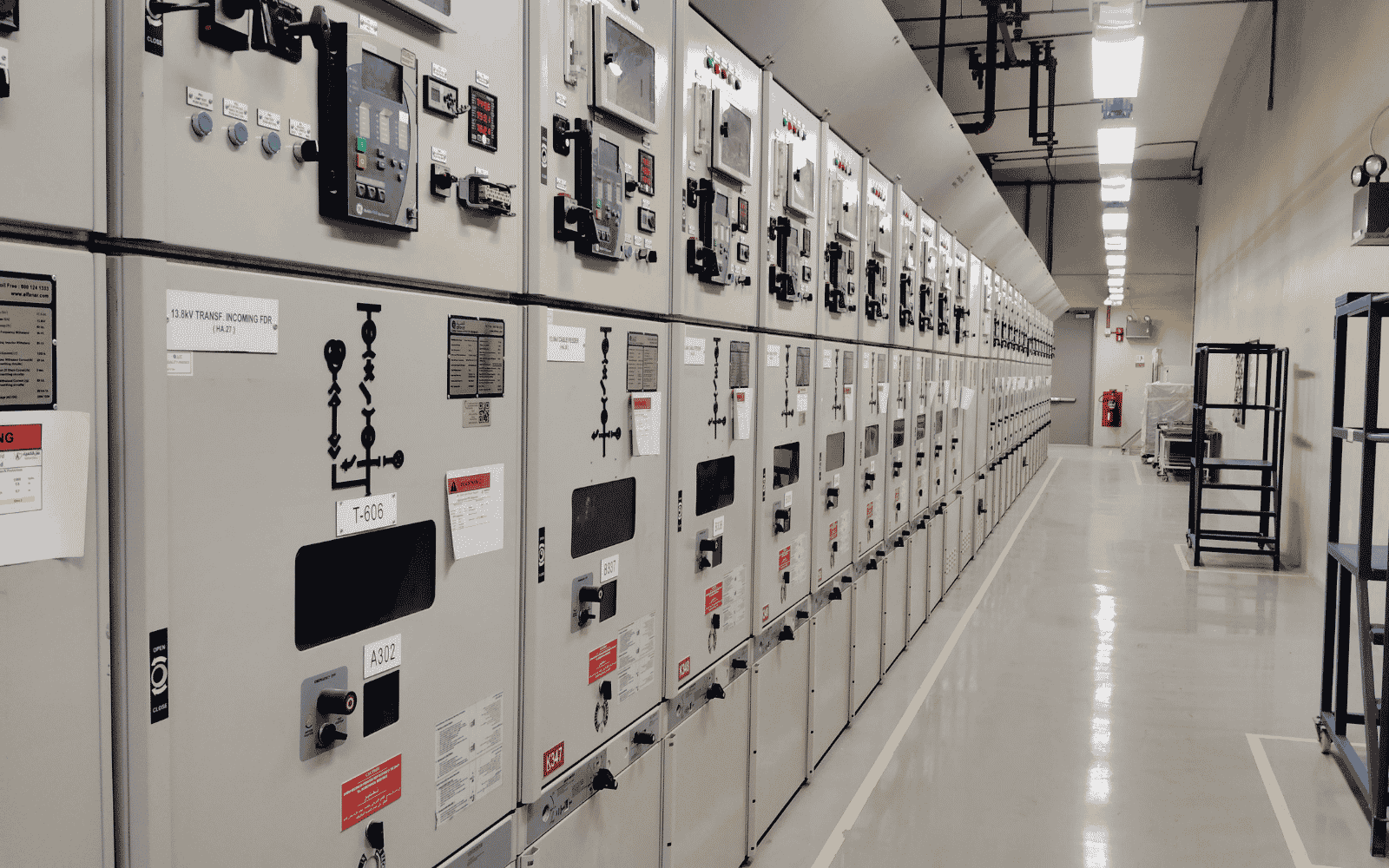

Fixed installation, 7×24 operation, ensuring stable and reliable timing links.
